Hygiene Solutions out of WÜRTH ALU-PROFILE SYSTEM (WAPS^®)

As a holistic partner, we are at your side even in extraordinary times and support you with our diverse product and system solutions.

Due to the Coronavirus, we have expanded our workplace systems with hygiene products out of the Würth Alu-Profile System (WAPS^®). The protective boards, hygiene mobiles and hygiene stations can be used flexibly and make it easier for you to implement hygiene measures.

HygieneFLEX Protection Board

Protective board

Mobile with 4 swivel castors

- Dimensions (WxDxH) = ca.1600 x 550 x 1900 mm
- Customer-specific dimensions on request
- 3 mm plexiglass plate (transparent) framed in aluminium profile 40 x 40
- Protection area (LxH) =1520 x 740 mm
- 4 x swivel castors (2 x with brakes) ensure easy movement and positioning
- Art.-No.: 1967701069

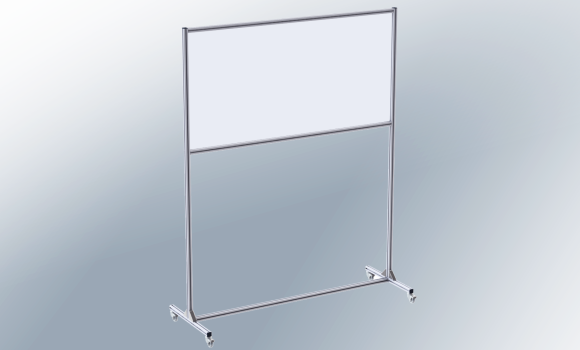

Protective board light

Mobile with 4 swivel castors

- Dimensions (WxDxH) =1580 x 550 x 1900 mm
- Customer-specific dimensions on request
- Lean design
- 3 mm plexiglass plate (transparent) framed in aluminium profile 30 x 30
- Protective surface (LxH) = 1524 x 744 mm
- Freestanding
- 4x steering castors (2x with brakes) ensure easy movement and positioning
- Art.-No.: 1967701195 (with crossbar)
- Art.-No.: 1967701194 (without crossbar)
- If you are interested, please contact your personal representative in our company.

Protective Board

Freestanding

- Dimensions (WxDxH) = ca. 1600 x 550 x 1900 mm
- Customer-specific dimensions on request
- 3 mm plexiglass plate (transparent) framed in aluminium profile 40 x 40
- Protection area (LxH) =1520 x 740 mm
- Freestanding
- Art.-No.: 1967701068

Protective board light

Freestanding

- Dimensions (WxDxH) =1580 x 550 x 1900 mm
- Customer-specific dimensions on request
- Lean design
- 3 mm plexiglass plate (transparent) framed in aluminium profile 30 x 30
- Protective surface (LxH) = 1524 x 744 mm
- Freestanding
- Art.-No.: 1967701193 (with crossbar)
- Art.-No.: 1967701192 (without crossbar)
- If you are interested, please contact your personal representative in our company.

Protective board

Freestanding

- Dimensions (WxDxH) =1575 x 250 x 670 mm
- Customer-specific dimensions on request
- 3 mm plexiglass plate (transparent) framed in aluminium profile 40 x 40
- Protective surface (LxH) = 1515 x 490 mm / pass-through at the bottom (LxH) = 1515 x 120 mm
- Freestanding
- Art.-No.: 1967701070

Protective Board

Clamped

- Dimensions (WxDxH) =1100 x 150 x 800 mm
- Customized dimensions on request
- 3 mm Makrolon sheet (transparent) enclosed in aluminum profile 30 x 30
- Protective surface (LxH) =1040 x 612 mm / Pass-through at bottom (LxH) = 1040 x 120 mm
- With 2 x clamping device - clamping range 25 - 45 mm
- Art.-Nr.: 1967701164

Protective board light

Frameless

- Dimensions (WxDxH) =720 x 120 x 550 mm
- Customer-specific dimensions on request
- 3 mm plexiglass plate (transparent)
- Protective surface (LxH) = 720 x 520 mm
- Framed in aluminium angle 60 x 60 x 30 mm
- Art.-No.: 1967701165
- If you are interested, please contact your personal representative in our company.

Individual solutions

Individual protective wall solutions. Example restaurant

In addition to the standardized protective walls, we also offer you individual solutions out of the Würth aluminum profile system that perfectly meet your requirements.

Our experts will be pleased to advise you.

Application

The HygieneFLEX-Protectionboard reduces the transmission of pathogens when people are directly next to or opposite each other. For example, employees in assembly, logistics, the office or even in the reception area can work in a more protected way with the necessary distance. The transparent plexiglass panel allows you to keep everything in view.

Manufactured from sturdy Würth aluminium profile system (WAPS^®), the protective walls nestle into almost any environment thanks to their timeless design and give a neat, professional appearance. The crash barriers can be set up quickly and positioned flexibly. Due to their straight, closed sides, they can be arranged in a row without gaps. They can be fastened to each other or, for example, to tables, but this is not necessary

In addition to the solid versions, our product range also includes the "light" protective walls, which are characterized by a leaner design. These products are currently not available in our online store. If you are interested, please get in touch with your personal contact person or with our experts in the field of workstation systems.

Stay flexible also in the future!

If the protective wall is no longer needed for protection against pathogens, you can replace the plexiglas panel with e.g. a magnetic or inscription panel and thus use it as a meeting or shop floor panel.

HygieneFlex Mobile

Made of Würth Aluminium Profile System (WAPS^®)
Dimensions (LxWxH) = 785 x 520 x 1590 mm
Customer-specific dimensions on request
4x swivel castors (2x with parking brake)
2x comfort handles on the sides
Load capacity: max. 300kg
Closed floor (8mm hard foam plate) with anti-slip mat
Usable on both sides
Front with 3 levels CLIP-O-FLEX^® 440 mm
Rear with 1 level CLIP-O-FLEX^® 440 mm (rear)
Note: Basic trolley without accessories!
Art.-No.: 1967701061

Application:

With the help of our flexible CLIP-O-FLEX^® suspension system, you can equip the HygieneFLEX Mobile modularly with different components to provide hygiene articles for your employees. Simply attach dispenser systems to the profile or the optionally available perforated plate wall. Use our CLIP-O-FLEX^® shelves to create storage space where it is needed.

Stay flexible in the future too!

If the trolley is no longer needed for the provision of hygiene articles, you can use it with just a few simple steps, e.g. as a C-parts trolley for containers and/or for the provision of tools in assembly!

Optional CLIP-O-FLEX® components:

CLIP-O-FLEX^® tray 345x260mm (Würth-Art.-No.: 0960070605) for filing and storing daily requirements, e.g. for disinfectants, gloves, protective masks, etc.)
CLIP-O-FLEX^® Perfoflex perforated plate 394 x 812mm (Würth-Art.-No.: 1967700671) for the rear attachment of disinfectant dispensers and other equipment via hook systems
CLIP-O-FLEX^® Wasteflex disposal container 9 litres(Würth-Art.-No.: 1967700077) , e.g. for the disposal of used hygiene articles

Equipment options with WÜRTH hygiene products:

Simply contact ouroccupational health and safety specialists or go directly to your personal contact person!

HygieneFLEX Station

Made of Würth Aluminium Profile System (WAPS^®)
Dimensions (L x W x H): approx. 1310 x 650 x 2000 mm
Customer-specific dimensions on request
Flexible and modular assembly
Perforated plate framed in aluminium profile Series B 120 x 40L
2 levels CLIP-O-FLEX^® (top and bottom on cross profile)
Ballast plate steel powder coated (rear)
With adjustable feet for floor anchoring

Application:

Fit different modular components on the perforated sheet wall using hook systems or on our flexible CLIP-O-FLEX^® suspension system and thus provide hygiene articles for your employees. Use our CLIP-O-FLEX^® shelves to create storage space where it is needed.

Stay flexible also in the future!

If the station is no longer needed for the provision of hygiene articles, you can convert it in just a few steps.

Multifunctional Wall with HygieneFlex-Station

Multifunctional wall for occupational safety and hygiene

Made of Würth Aluminium Profile System (WAPS^®)
4 individual wall elements
Dimensions: 4 x 1,310 mm = 5,240 mm x depth approx. 650 mm x height 2000 mm
Freestanding
Single standing or connection of the 4 element
fire protection (red), occupational safety (blue), first aid (green), hygiene (yellow)
Colour marking by cover strips for profile grooves
Ballast plates (rear) for stability
Without illustrated accessories
Image similar, but without coloured area elements

Application:

Use the multi-functional wall as a central point of contact for the provision of information and protective material on fire protection, occupational safety, first aid and now hygiene. The elements can be set up individually or together, e.g. as a 2 or 4-parts unit.
