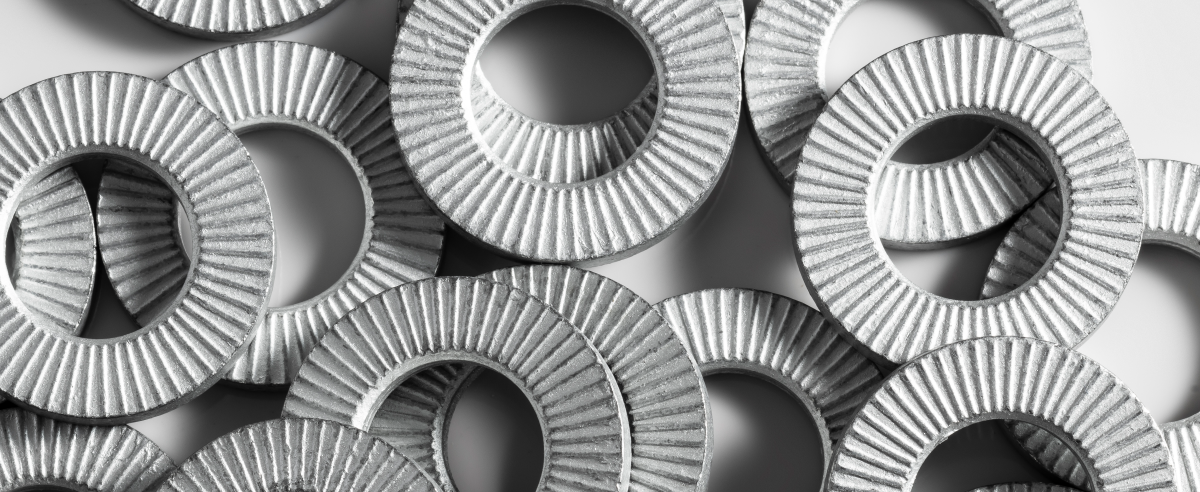

Ribbed washers

Ribbed washers that press in

from our W.TEC® product series

Our newly developed ribbed washer combines simplicity with technical sophistication. Its one-piece locking system secures your screw connection against self-loosening.

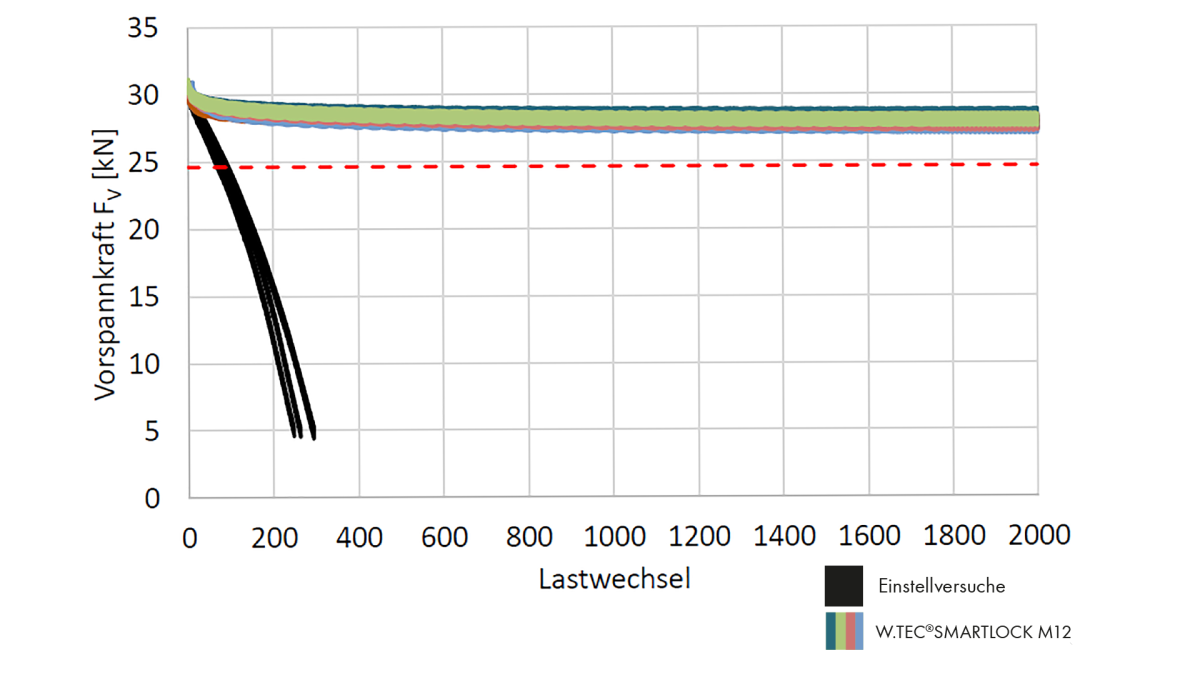

Junker test according to DIN 65151 and DIN 25201-4

The locking effect of all dimensions was confirmed by an independent institute via a Junker test according to DIN 65151 and DIN 25201-4.

The residual preload of the screw connection was still at least 80% after the test.

Junker test for ribbed washers

  • Locking method: Anti-rotation lock
  • Material: Steel
  • Surface: Zinc flake - ZFSH
  • Hardness: 450 - 500 HV10

Advantages:

  • Very good locking effect
  • Surface-friendly
  • Easy assembly and disassembly
  • Reusable
  • For use up to strength class 12.9
  • Low space requirement
Ribbed washers for the industry

Do you wish to be convinced of the quality of the ribbed washers? As an industrial customer, you can request free sample boxes of some of our W.TEC® products.

Ribbed washers

How do ribbed washers work?

Due to the preload applied during assembly, the radial ribs of the ribbed washer press into the mating material.

This process results in a form-fit connection of the respective contact surfaces. This form fit in combination with the angles α and β ensures reliable locking against loosening even under strong dynamic influences and vibrations.



Application examples of ribbed washers

Mechanical engineering

Mechanical engineering and plant engineering

Cargo and agricultural machinery

Cargo and agricultural machinery construction

Our in-house product series W.TEC® represents our carefully curated selection of products that stand out due to their excellent functionality and top class quality. Each product has been developed with the highest quality standards in order to meet the requirements of the industrial customers. This combination of precision and performance makes the products of our W.TEC® series price and performance champions.​
